The inMotion Data Platform
The inMotion Data Platform is the time-series engine behind inMotion and the inMotion App — inMotion is simply one application built on top of it. Developers can integrate with the platform directly using a RESTful API, defined using the OpenAPI Specification. Whether you're pushing data from a weather station, an industrial sensor, a fleet of vehicles, or your own application, the API lets you create activities and data streams and write time-series records directly into the platform.
To enable the API you will need to create a developer key, which is associated with your account. If your integration requires the end user to login, then this is the preferred authentication method. If you are integrating a device, then you will also need to create an API Key.
To be granted permissions to create an API and Developer key, please contact as us at to request elevated account permissions.

Data model: streams, channels and activities

  • Activities - Data is organised into Track activities (a moving path, e.g. a run, ride or flight) or Site activities (a fixed location, e.g. a weather station or load cell).
  • Data streams - Each activity is backed by one or more data streams, which are containers for the variables and dimensions you record.
  • Channels - Every stream separates data into channels: As-Acquired (the raw readings you upload), Quality-Controlled (flagged, corrected or interpolated values) and Processed (derived/aggregated values). Raw data is never overwritten — QC and processed views are computed from it.
  • Standard Data Types - Variables can be aligned to standard data types (e.g. air temperature, speed, load) so data from different sources and sensors can be compared consistently.

Authentication

  • Developer key - A key/secret pair tied to your account, used to sign requests with HMAC. Preferred when your integration authenticates on behalf of a logged-in user.
  • API key - Used for unattended devices and services (e.g. a sensor or gateway) that upload data without a user present. Created from the API Keys tab in Settings once your account has been granted the required permission.
  • HMAC signing - All API requests are signed so that inMotion can verify the request body hasn't been tampered with in transit.

Creating your keys

Not available on the Free (Personal) plan.

Choose Developer Keys from the account dropdown menu to create a developer key/secret pair. Use the + button to add a new key, give it a name, optionally enable HMAC signing, and set an expiration date (or leave it as No expiration date for a long-lived key). Copy the key and secret using the icon alongside each field - the secret is only ever shown here.

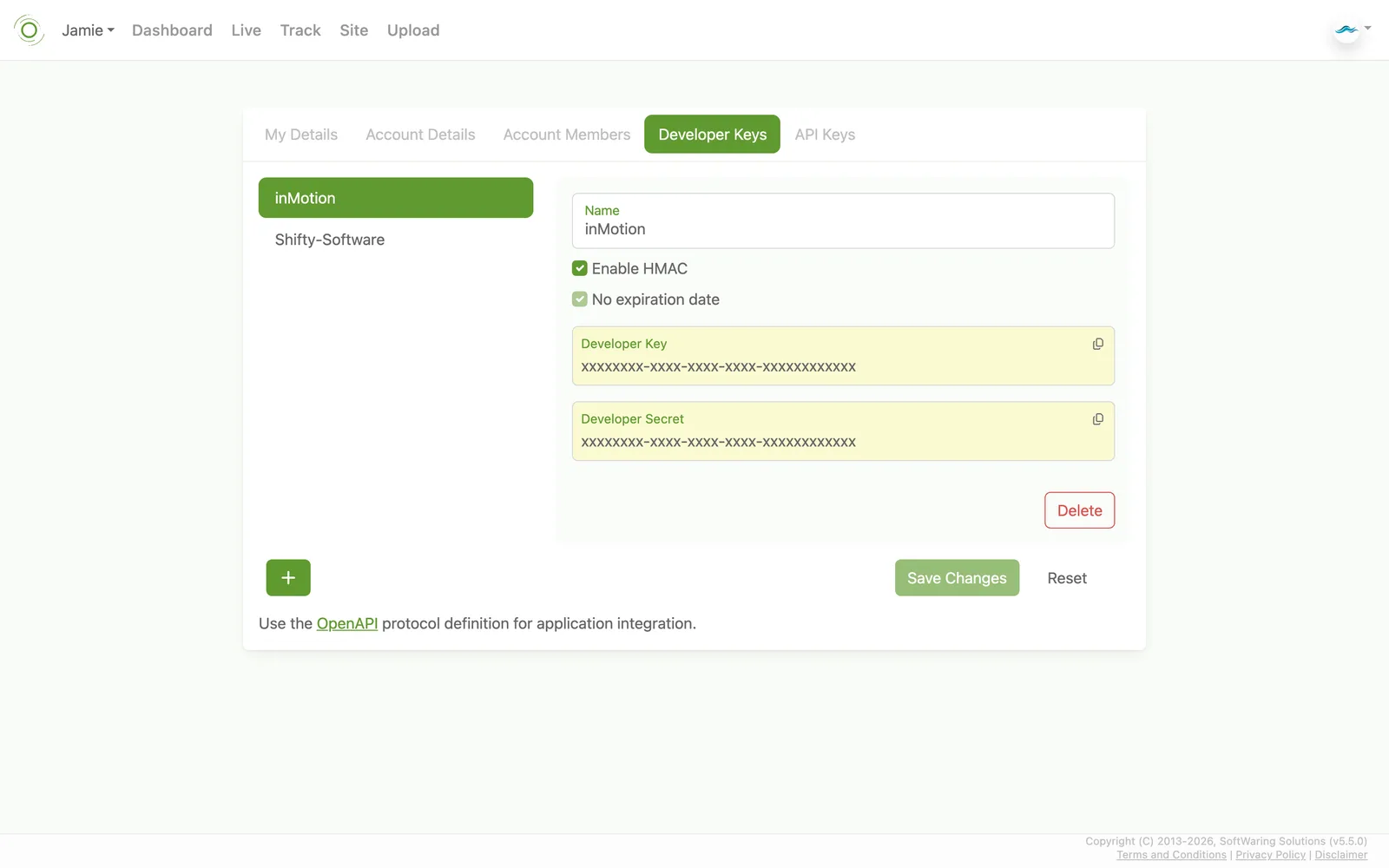

The Developer Keys settings tab
API Keys, also under the dropdown menu, let you generate an account key and API key pair scoped to a specific access level (None, Consumer, Contributor, or Owner) for a third-party integration - handy when you want to grant a device or service access without sharing your own login. Give the key a name, choose its access level and optional expiration, and save. Each settings tab links to the OpenAPI protocol definition, which documents how to use these keys in your own application.

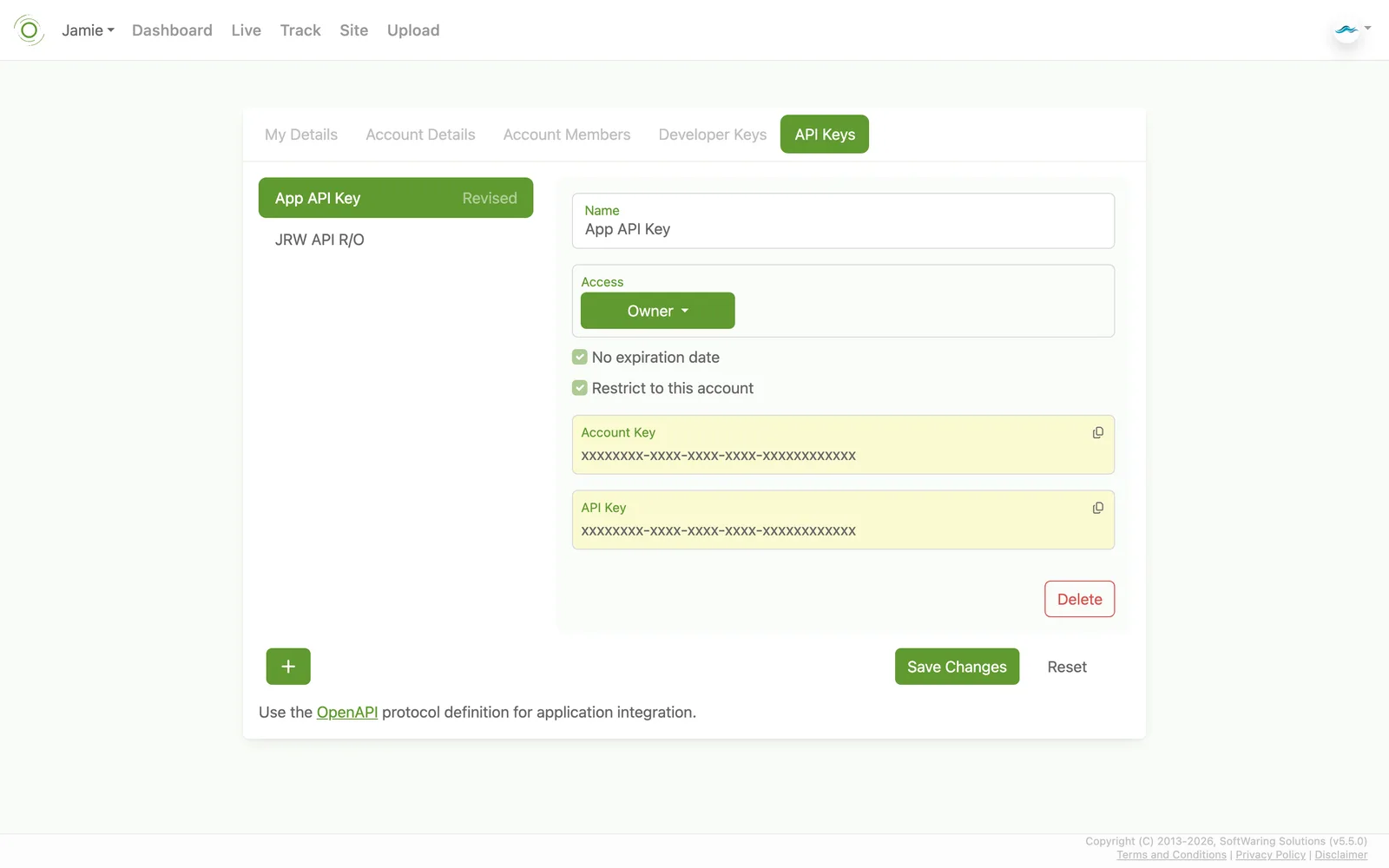

The API Keys settings tab

Getting data in

  • REST API - Create activities and streams, then write records directly, whether you're streaming live readings or backfilling historic data.
  • Batch updates - Submit records from multiple devices in a single API call to reduce round trips for high-frequency or multi-sensor deployments.
  • File upload - CSV, GeoJSON and Shapefiles can be uploaded directly through the web application without writing any integration code.

SDKs and examples

A Python SDK is available for integrating scripts, data pipelines and IoT gateways with inMotion. A NodeJS SDK is planned — please get in touch if you'd like early access.
  • Weather stations - Import historical or live climatology readings as Site activities.
  • Industrial sensors - Stream high-frequency sensor data (e.g. load cells) and upload windowed statistics for long-running equipment monitoring.
  • Fleet & asset tracking - Push GPS and telemetry from vehicles or other moving assets as Track activities.

MCP server for LLM clients

An MCP server is available for querying inMotion activity data from LLM clients such as Claude. All you need to connect is an API key.
